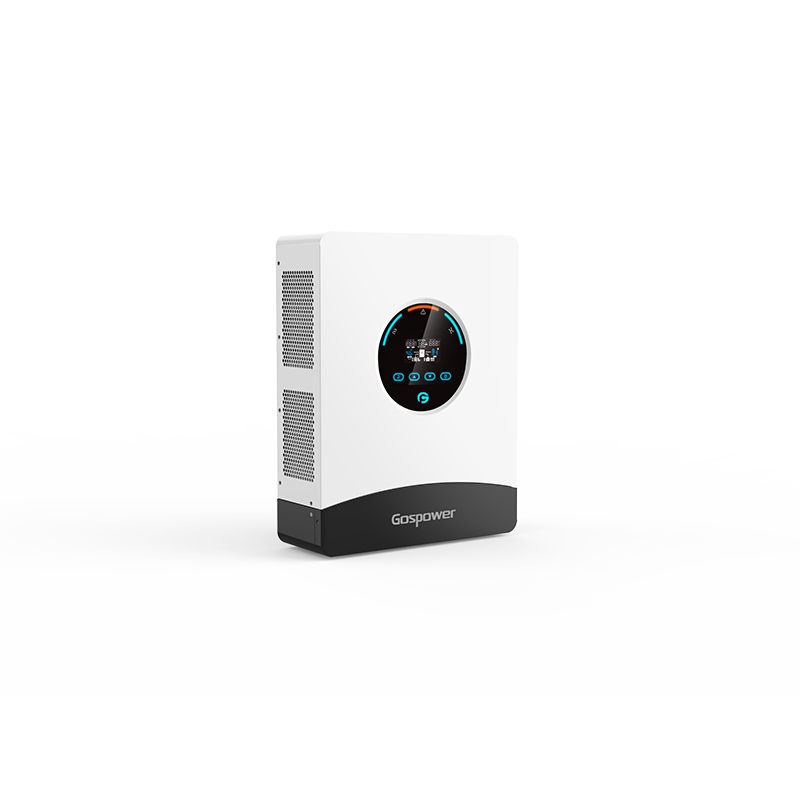

Gospower GPEO-6KL1 pure sine wave solar inverter is a perfect design for home- installation with its compact size and quick setting. With a wide MPPT operating range of 85-450V, Gospower inverter is a good option for your household system.
Item No :
GPEO-6KL1Residential Off-Grid Single Phase Inverter 6kW Built-in MPPT 27A
IP54 Design
Pure Sine Wave
Built-in MPPT
BMS Communication
Max. 12 Units Parallel
3 Years Warranty
Battery type: Lead acid, LiFePO4
The single-phase off-grid inverter features an IP54 design, ensuring reliable performance even in challenging environments. Its pure sine wave output guarantees stable and clean power for sensitive electronics. With a wide MPPT operating range, it optimizes energy harvesting from solar panels efficiently.
The Gospower GPEO-6KL1 pure sine wave solar inverter integrates with built-in BMS communication, the inverter enables seamless monitoring and management of battery performance. Capable of parallel operation with up to 12 units, it offers scalability to meet growing energy demands. Backed by 3-year warranty, users can trust in its durability and longevity.
Moreover, its compatibility with various battery types including lead-acid and LiFePO4 enhances flexibility and suitability for diverse off-grid setups.
| |
GPEO-4KL1 |
GPEO-6KL1 |
GPE0-12KL1 |
|
| PV (DC Input) |
Recommended max.PV input power | 4000W | 6000W | 12000W |
| Max.input voltage(Voc) | 500V | 500V | 500V | |
| MPPT operating voltage range | 85V-450V(@85V start up) | 85V-450V (@75V start up) | 85V-450V (@75V start up) | |
| Number of MPPT | 1 | 1 | 2 | |
| Max.number of input strings per MPPT | 1 | 1 | 1 | |
| Max.input current per MPPT | 15A | 27A | 27/13(MAX:40A) | |
| Max.short-circuit current per MPPT | 18A | 35A | 35A/17.5A | |
| Grid (AC Input) |
Max input power | 5000W | 11500W | 16000W |
| Max input current | 28A | 50A | 90A | |
| Rated grid voltage | 220/230/240Vac | 220/230/240Vac | 220/230/240Vac | |
| Rated grid frequency | 50/60Hz | 50/60Hz | 50/60Hz | |
| Acceptable range | 170-280Vac(For UPS); 90-280Vac(For Home Appliances) |
170-280Vac(For UPS); 90-280Vac(For Home Appliances) |
170-280Vac(For UPS); 90-280Vac(For Home Appliances) |
|
| Battery Parameters (Bidirection) |
Battery type | LiFePO4/Lead-acid | LiFePO4/Lead-acid | LiFePO4/Lead-acid |
| Battery voltage range | 20~30Vdc | 40~60Vdc | 40~60Vdc | |
| Rate Battery Voltage | 24Vdc | 48Vdc | 48Vdc | |
| Max.charge/discharge current | 120A/160A | 120A/130A | 210A/230A | |
| BMS communication mode | RS485 | RS485 | RS485 | |
| Back-up Output (AC Output) |
Rated output power | 4000W/4000VA | 6000W/6000VA | 12000W/12000VA(Twin output) |
| Rated output current | 18.2A | 27.3A | 54.5A | |
| Rated output voltage /Frequency | 220/230/240Vac 50/60Hz | 220/230/240Vac 50/60Hz | 220/230/240Vac 50/60Hz | |
| Parallel Capacity | _ | Max. 12 Units | Max. 12 Units | |
| Surge power | 8000VA 5s | 12000VA 5s | 24000VA 5s | |
| THDv(@linear load) | ＜3% | ＜3% | ＜3% | |
| Switching time | 10ms typical (For UPS) 20ms typical(For Home Appliances) | |||
| Efficiency | Peak efficiency | 95.00% | 98.00% | 98.00% |
| Max.MPPT efficiency | 99.90% | 99.90% | 99.90% | |
| Protection | Inner protection | √ Output short-circuit protection √ Output overvoltage protection | ||
| Surge protection | PV:Type III,AC:Type III | |||
| IP rating | IP54 | |||
| General Parameters |
Operating temperature range | -10℃ ~ 55℃ | ||
| Relative humidity range | 5%~95% | 5%~95% | 5%~95% | |
| Max.operating altitude | ＞2000m derating | ＞2000m derating | ＞2000m derating | |
| Standby self-consumption | ＜10W | ＜10W | ＜20W | |
| Installation type | Wall-mounted | Wall-mounted | Wall-mounted | |
| Cooling mode | Fan cooling | Fan cooling | Fan cooling | |
| Communication | RS232/RS485/Dry contact/WI-FI | RS232/RS485/Dry contact/WI-FI | RS232/RS485/Dry contact/WI-FI | |
| Display | LCD | LCD | LCD | |
| Mechanical Specification |
Inverter dimensions (L*W*H) (mm) | 444.7*346.6*120 | 444.7*346.6*120 | 630*535*125 |
| Net weight (kg) | 9.2 | 12.4 | 27 | |
| Shipping dimensions (L*W*H)(mm) | 560*465*240 | 560*465*240 | 745*650*240 | |
| Gross weight (kg) | 11.4 | 14.6 | 30 | |
| Warranty Period | 3 Years | |||
|
