The Microinverter is used in utility-interactive grid-tied applications, comprised of two key elements:
·Microinverter
·Router
This series microinverter has built-in WIFI module so it can communicate with router directly.
Item No :

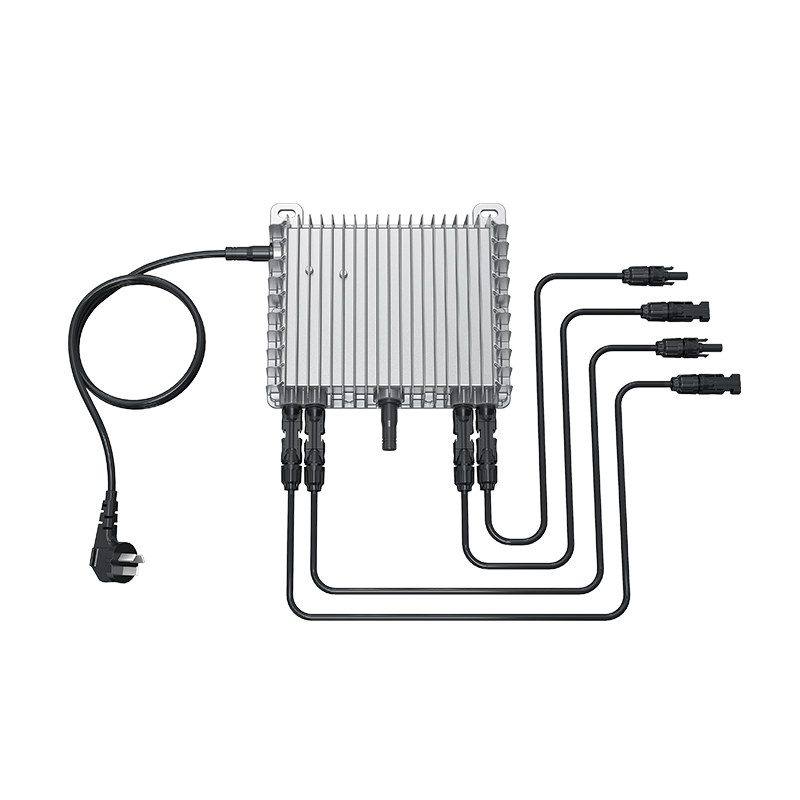

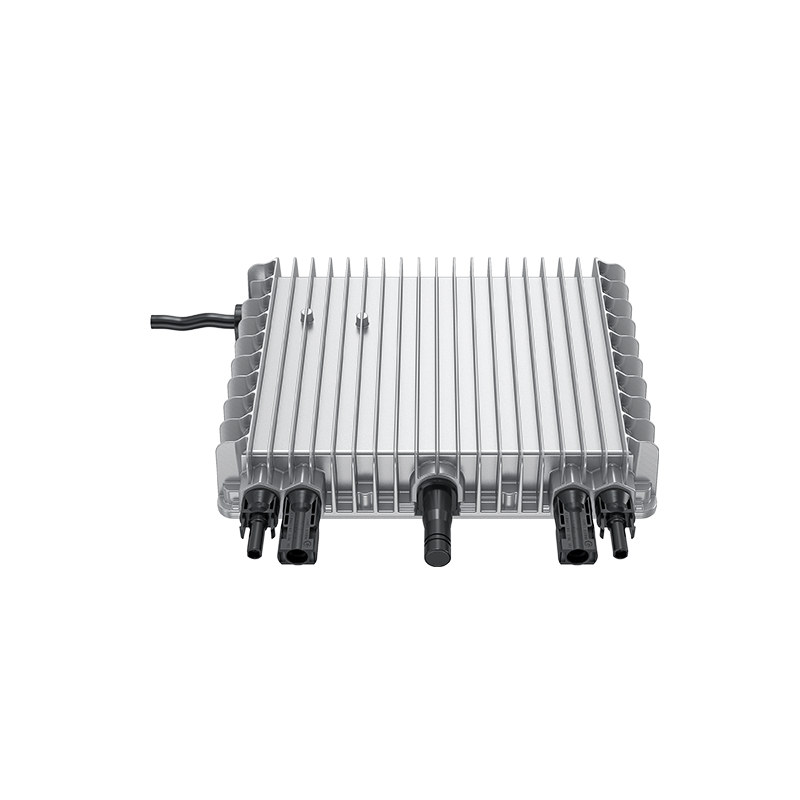

GPEM-800WMicro Inverter 800W Single Phase IP67 Design
IP67 Design
PLUG & PLAY
Balcony & Carvan & Yacht
Photovoltaic Solution
10 Years Warranty
Easy installation
Micro inverters are the best way to create a cost-effective production of on-grid electricity to power your household.
Competitive price solar micro inverter can better track the change of solar luminosity and control different output power by the MPPT function, effectively capturing and collecting sunlight.
GPEM-800W Single Phase microinverter has 800W output power and is suitable for household, small-scale industries and commercial scenarios.
Each microinverter can connect to 2 solar modules, with independent MPPT and monitoring maximizing the power production of your installation.
The whole machine adopts metal housing to promote heat dissipation and is durable, with an IP67 protection level to adapt to various harsh environments.Built-in intelligent Wi-Fi module, real-time monitoring and fault identification.
| Model | GPEM-600W | GPEM-800W | |||||||
| Input Data(DC) | |||||||||
| Commonly used module power (W) | 240 to 405+ | 280 to 470+ | |||||||
| Maximum input voltage (V) | 60 | ||||||||
| MPPT voltage range (V) | 25-55 | ||||||||
| Start-up voltage (V) | 22 | ||||||||
| Maximum input current (A) | 2 × 11.5 | 2 × 12.5 | |||||||
| Maximum input short circuit current (A) | 2 × 15 | ||||||||
| Number of MPPTs | 2 | ||||||||
| Number of inputs per MPPT | 2 | ||||||||
| Output Data (AC) | |||||||||
| Peak output power (VA) | 600 | 800 | |||||||
| Maximum continuous output power (VA) | 600 | 800 | |||||||
| Maximum continuous output current (A) | 2.73 | 2.61 | 2.48 | 3.64 | 3.48 | 3.33 | |||
| Nominal output voltage/range (V)1 | 220/180-265 | 230/180-265 | 240/180-265 | 220/180-265 | 230/180-265 | 240/180-265 | |||
| Nominal frequency/range (Hz)1 | 50/47-55 | ||||||||
| 60/55-64 | |||||||||
| Power factor (adjustable) | > 0.99 default | ||||||||
| 0.8 leading … 0.8 lagging | |||||||||
| Total harmonic distortion | < 5% | ||||||||
| Maximum units per 10 AWG branch2 | 8 | 9 | 9 | 6 | 6 | 7 | |||
| Maximum units per 12 AWG branch2 | 5 | 5 | 6 | 4 | 4 | 4 | |||
| Efficiency | |||||||||
| CEC peak efficiency | 96.50% | ||||||||
| CEC weighted efficiency | 95% | ||||||||
| Nominal MPPT efficiency | 99.00% | ||||||||
| Nighttime power consumption (mW) | <50 | ||||||||
| Mechanical Data | |||||||||
| Ambient temperature range (°C) | -40 to +65 | ||||||||
| Dimensions (W × H × D [mm]) | 227×202×42 | ||||||||
| Weight (kg) | 3kg | ||||||||
| Enclosure rating | Outdoor-NEMA 6 (IP67) | ||||||||
| Cooling | Natural convection – No fans | ||||||||
| Features | |||||||||
| Communication | 2.4 GHz Proprietary RF (Nordic) | ||||||||
| Type of isolation | Galvanically Isolated HF Transformer | ||||||||
| Warranty | Up to 10 years | ||||||||
| Compliance | UL 1741, IEEE 1547, UL 1741 SA (240 Vac), UL 1741 SB, CA Rule 21 (240 Vac)4, CSA C22.2 No. 107.1-16, FCC Part 15B, FCC Part 15C | ||||||||
| PV Rapid Shutdown | Conforms with NEC-2017 and NEC-2020 Article 690.12 | ||||||||
| and CEC-2021 Sec 64-218 Rapid Shutdown of PV Systems | |||||||||
|
Gospower is a leading Energy &Electric company founded in 2006. We are world-renowned manufacturer and supplier of energy storage battery,hybrid and off-grid inverters and power supply products. 1. One-stop service 2. 18+ Years Experience 3. Strict QC inspection report for each order 4. Automatic production equipments, complete the order with quality and quantity guarantee, 99.9%+ good product yield rate 5. Engineers have extensive experience in installation solutions and can design installation solutions based on specific project details 6. Perfect after-sales service system 7. More than 10 overseas offices 8. Dispatch technicians for on-site maintenance and technical training, and provide marketing strategies and marketing materials |
 |
 |
|
 |
Headquartered in Shenzhen,Gospower has a factory in Dongguan Songshan Lake Industrial Park of 80,000 sqm,more than 1200 employees.
|
Aging Test |
ATE Test |
Auto Plugin |
|
Conduction Pretest |
Conduction Pretest |
EMS Test |
|
PCB Test |
Vibration Test |
Final Inspection |
Tags :
