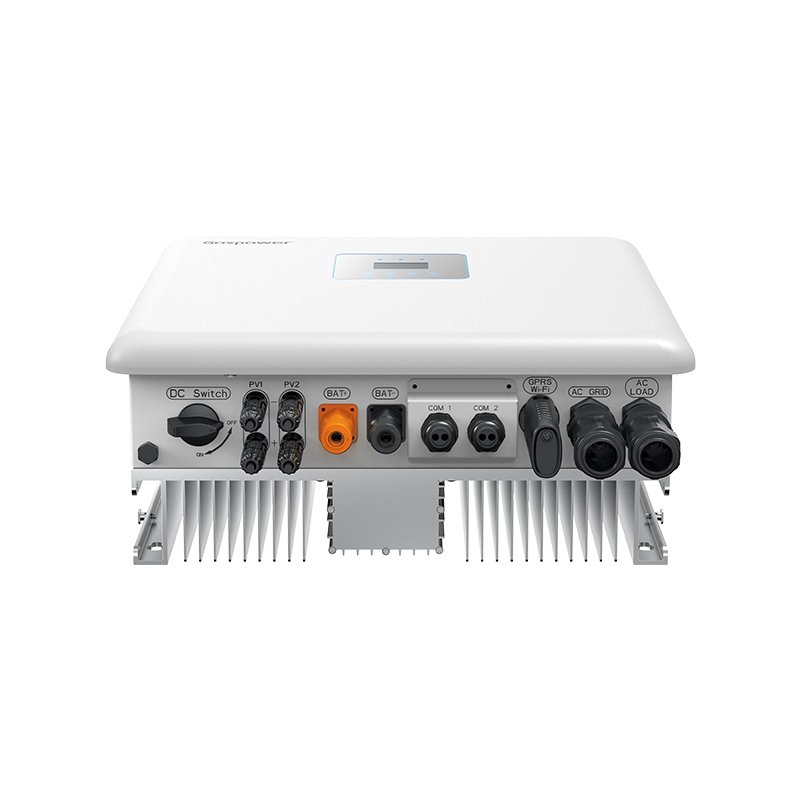

Gospower GPEX-6KL1 hybrid inverter is a high-performance single phase energy controller, including max.6 units paralleling connected. It can keep more home appliances active with higher self-sufficiency in green energy and lower electricity bills.
Item No :
GPEX-6KL16kW Built-in MPPT 13/14A Single Phase Residential Hybrid Inverter
IP65 Design,Natural Cooling
Support LFP &SLA Battery
Max. 6 Units Parallel
5/10/15 Years Waranty
Hybrid technology with MPPT charge controller
High efficiency up to 97%
6kW/48V GPEX-6KL1 hybrid inverter is a real hybrid inverter/charger with multi-function, Off Grid and On Grid solar inverter, Support self-consumption and also can feed into the grid. Gospower 6kw residential hybrid inverter is multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with portable size.
Gospower Hybrid inverter range that supprt power for important loads during load shedding as well as saving power during peak demands. Making this the ideal solution you always wanted.
| GPEX-3K6L1 | GPEX-5KL1 | GPEX-6KL1 | ||
| PV (DC Input) |
Recommended max. PV input power | 4800W | 8000W | 8000W |
| Max.input voltage(Voc) | 600V | 600V | 600V | |
| MPPT operating voltage range | 120-550V | 120-550V | 120-550V | |
| Number of MPPT | 1 | 2 | 2 | |
| Max.number of input string perr MPPT | 1 | 1 | 1 | |
| Max.input current per MPPT | 13A | 13/13A | 13/13A | |
| Max.short-circuit current per MPPT | 20A | 20A | 20A | |
| On-grid (Bidirection) |
Rated input power | 3600W | 5000W | 6000W |
| Rated input current | 15.7A | 21.7A | 26.1A | |
| Rated grid voltage | 230V(L,N,PE)50/60Hz | 230V(L,N,PE)50/60Hz | 230V(L,N,PE)50/60Hz | |
| THDi | ＜3% | ＜3% | ＜3% | |
| Power factor | -0.8～+0.8 | -0.8～+0.8 | -0.8～+0.8 | |
| Batten parameters (Bidirection) |
Battery type | SLA &LiFePO4 | SLA &LiFePO4 | SLA &LiFePO4 |
| Battery voltage range | 40-60V | 40-60V | 40-60V | |
| Rated Battery voltage | 48VDC | 48VDC | 48VDC | |
| Max.charge/discharge current | 50A | 100A | 100A | |
| BMS communication mode | 485:CAN | 485:CAN | 485:CAN | |
| Back-up Output (AC Output) |
Rated output power | 3600W | 5000W | 6000W |
| Rated output current | 15.7A | 21.7A | 26.1A | |
| Rated output voltage | 230V(L,N,PE)50/60Hz | 230V(L,N,PE)50/60H | 230V(L,N,PE)50/60Hz | |
| Surge power | 3960VA | 5500VA | 6600VA | |
| THDv(@linear load) | ＜3% | ＜3% | ＜3% | |
| switching time | <10ms | <10m | <10m | |
| Efficiency | Max. MPPT efficiency | 99.90% | 99.90% | 99.90% |
| Max. efficiency | 97.20% | 98.00% | 98.00% | |
| European efficiency | 96.40% | 97.10% | 97.10% | |
| Battery charging/discharging efficiency | 94.00% | 94.00% | 94.00% | |
| Protection | Protection | √DC switch √PV reverse connection protection √Battery reverse connection protection √Output short-circuit protection √Output overvoltage protection √Insulation impedance detection √Residual current detection √Anti-island protection |
||
| Surge Protection | PV:Type Ⅲ, AC:Type Ⅲ | |||
| Ip rating | IP65 | IP65 | IP65 | |
| General parameters |
Operating temperature range | -25~60℃ | -25~60℃ | -25~60℃ |
| Relative humidity range | 0～95% | 0~95% | 0~95% | |
| Installation type | Wall mounted | Wall nnounted | Wall mounte | |
| Cooling mode | Natural cooling | Natural cooling | Natural cooling | |
| Communication | Wi-Fi; R485; CAN; GPRS | Wi-Fi; R485; CAN; GPRS | Wi-Fi; R485; CAN; GPRS | |

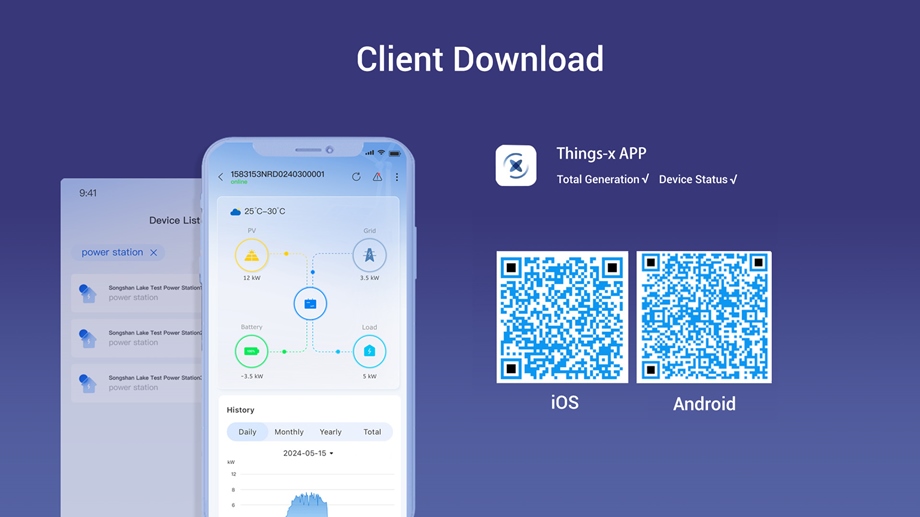

| Display | LCD;APP | LCD;APP | LCD;APP | |
| Mechanical specifications | Inverter dimensions (L*W*H)(mm) | 535*485*198.5 | 535*485*198.5 | 535*485*198.5 |
| Net weight (kg) | 27.5 | 29 | 29 | |
| Carton dimensions (L*W*H)(mm) | 715*565*331 | 715*565*331 | 715*565*331 | |
| Gross weight (kg) | 31.5 | 34.5 | 34.5 | |
| Warranty | 5 Years Standard (10/15 Years Optional) | |||
|
