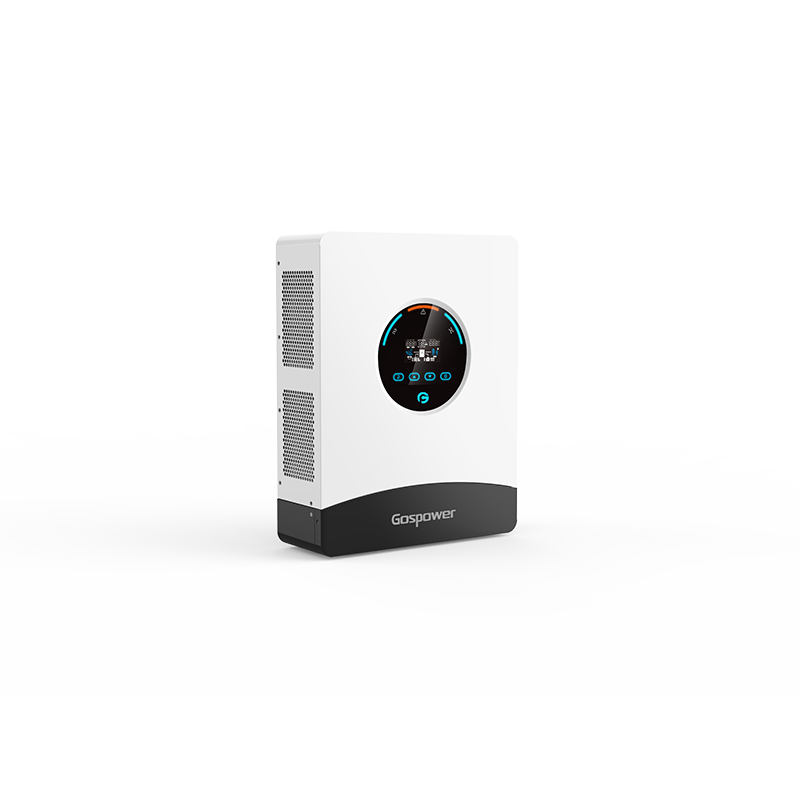

Gospower GPEO-6KL2-US is a perfect match for residential installations thanks to its compact size and easy installation. Manufactured for durability and longevity under modern industrial standards, Gospower GPEO-6KL2-US is IP54 rated so it can be mounted either inside or outside your home.
Item No :
GPEO-6KL2-US6kW 27A Split Phase Residential Off-Grid Inverter Built-in MPPT
IP54 Design
Pure Sine Wave
Built-in MPPT
BMS Communication
Max. 12 Units Parallel
3 Years Warranty
The Gospower GPEO-6KL2-US, the ideal choice for residential installations seeking reliable power solutions. With its compact size and straightforward installation process, this inverter seamlessly integrates into your home environment. Engineered to meet modern industrial standards, the Gospower GPEO-6KL2-US is built for durability and longevity, ensuring consistent performance over time. Its IP54 rating offers versatility, allowing for installation indoors or outdoors with confidence.
This 27A Split Phase Residential Off-Grid Inverter with 6kW MPPT capability provides efficient power management tailored to residential needs, making it the perfect solution for your home's energy requirements.
| GPEO-3K5L1-US | GPEO-6KL2-US | GPEO-12KL2-US | ||
| PV (DC Input) |
Recommended max. PV input power | 4000W | 6000W | 12000W |
| Max.input voltage(Voc) | 500V | 500V | 500V | |
| MPPT operating voltage range | 85V-450V (@75V start up) | 85V-450V (@75V start up) | 85V-450V (@75V start up) |
|
| Number of MPPT | 1 | 1 | 2 | |
| Max.number of input strings per MPPT | 1 | 1 | 1 | |
| Max.input current per MPPT | 18A | 27A | 27/1 3(MAX:40A) |
|
| Max. short-circuit current per MPPT | 22A | 35A | 37A/1 7.5A |
|
| Grid (AC Input) |
Max input power | 6000W | 12000W | 24000W |
| Max input current | 50A | 50A | 100A | |
| Rated grid voltage | 110/120/127Vac (L,N) | 220/2307240Vac(L,N,PE | 120/240,208Vac(L1,L2,N) |
|
| ated grid frequency | 50/60Hz | 50/60Hz | 50/60Hz | |
| Acceptable range |
90-140Vac (For UPS); 80-140Vac (For Home Appliances) |
90-140Vac (For UPS); 80-140Vac (For Home Appliances) |
90-1 40Vac (For UPS) ; 80-1 40Vac (For Home Appliances) |
|
| Rattey parameters (Bidirection) |
Battery type | LiFePO 4 /Lead-acid | LiFePO 4 /Lead-acid | LiFePO 4 /Lead-acid |
| Battery voltage rang | 40-60Vdc | 40-60Vdc | 40-60Vdc |
|
| Rate Battery Voltage | 48Vdc | 48Vdc | 48Vdc |
|
| Max.charge/discharge current | 60A/65A | 120A/130A | 210A/230A |
|
| BMS communication mode | RS485 | RS485 | RS485 |
|
| Back-up Output (AC Output) |
Rated output power | 3500W/3500VA | 6000W/6000VA | 12000W/12000VA |
| Rated output current | 31.8A | 27.3A | 54.5A | |
| Rated output voltage / Frequency | 110/120/127V (L,N) 50/60Hz | 120/240V (L1,L2,N) 50/60Hz | 120/240V (L1,L2,N) 50/60Hz |
|
| Parallel Capacity | Max. 12 Units | Max. 12 Units | Max. 12 Units |
|
| Surge power | 7000VA 5s | 1200VA 5s | 24000VA 5s | |
| THDv (@linear load) | <3% | <3% | <3% | |
| Switching time | 10ms typical (For UPS)20ms typical (For Home Appliances) | |||
| Efficiency | Peak efficiency | 98.00% | 98.00% | 98.00% |
| Max.MPPT efficiency | 99.90% | 99.90% | 99.90% | |
| Protection | lnner protection | √Output short-circuit protection √Output overvoltage protection | ||
| Surge protection | PV: Type III, AC: Type III |
|||
| IP rating | IP54 | |||
| Genera Parameters |
Operating temperature range | -10℃~55℃ | ||
| Relative humidity range | 5%~95% | 5%~95% | 5%~95% | |
| Max.operating altitude | ＞2000m derating | ＞2000m derating | ＞2000m derating | |
| Standby sef-consumption | <10W | <10W | <20W | |
| Installation type | Wall-mounted | Wall-mounted | Wall-mounted | |
| Cooling mode | Fan cooling | Fan cooling | Fan cooling | |
| Communication | RS232/RS485/Dry contact/WI-FI | RS232/RS485/Dry contact/WI-FI | RS232/RS485/Dry contact/WI-FI | |
| Display | LCD | LCD | LCD | |
| Mechanical specifications |
Inverter dimensions (L*W*H) (mm) | 444.7*346.6*120 | 444.7*346.6*120 | 630*535*125 |
| Net weight (kg) | 12 | 15 | 28 | |
| Shipping dimensions (L *W*H) (mm) | 560*465*240 | 560*465*240 | 745*650*240 | |
| Gross weight (kg | 14 | 17 | 31 | |
| Warranty | 3 Years | |||
|
