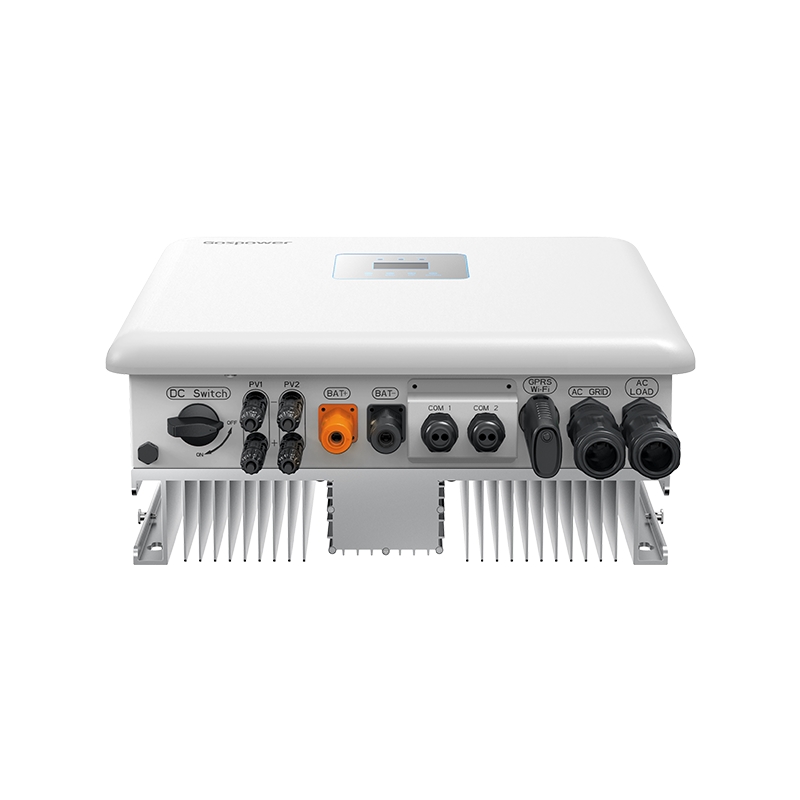

Gospower GPEX-3K6L1 hybrid inverter is a high-performance single phase energy controller, including max.6 units paralleling connected. It can keep more home appliances active with higher self-sufficiency in green energy and lower electricity bills.
Item No :
GPEX-3K6L13.6kW Built-in MPPT 13A Single Phase Residential Hybird Inverter
IP65 Design,Natural Cooling
Support LFP &SLA Battery
Max.6 Units Parallel
5/10/15 Years Waranty
Single phase
Easy installation
Lightweight and compact
Gospower GPEX-3K6L1 hybrid inverter offers not only power and flexibility but also convenience and reliability, packaged in a smart and efficient design.
This 3.6kW solar hybrid inverter supports both bifacial solar panels and high-power modules, making it an extremely flexible choice for your solar energy system.

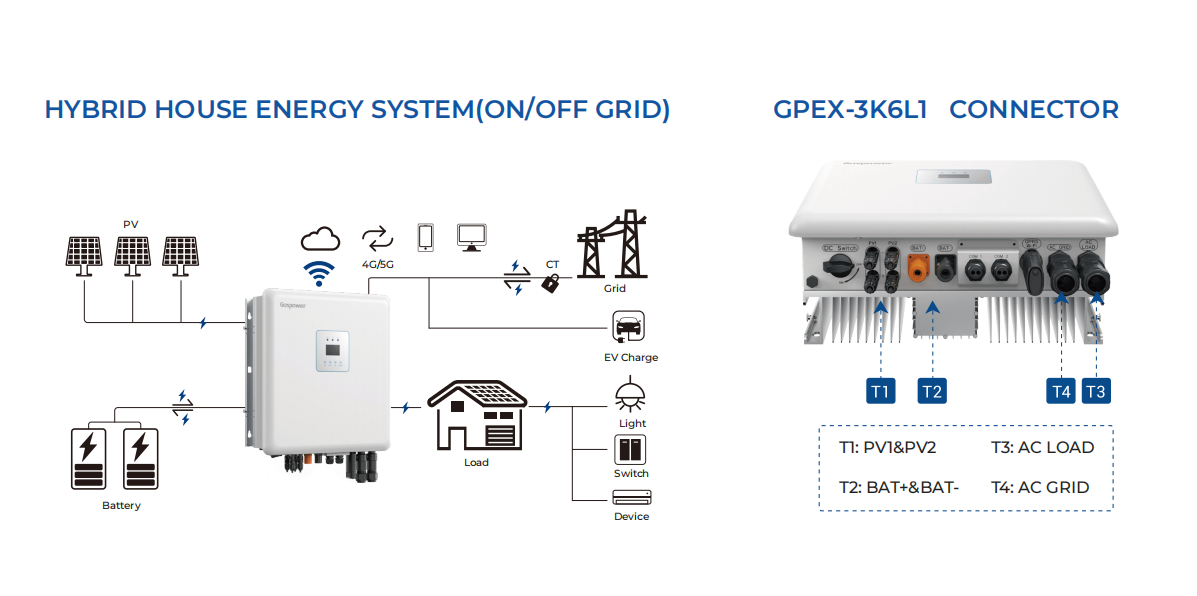

Gospower 3.6kW residential hybird inverter range that supprt power for important loads during load shedding as well as saving power during peak demands. Making this the ideal solution you always wanted.
| GPEX-3K6L1 | GPEX-5KL1 | GPEX-6KL1 | ||
| PV (DC Input) |
Recommended max. PV input power | 4800W | 8000W | 8000W |
| Max.input voltage(Voc) | 600V | 600V | 600V | |
| MPPT operating voltage range | 120-550V | 120-550V | 120-550V | |
| Number of MPPT | 1 | 2 | 2 | |
| Max.number of input string perr MPPT | 1 | 1 | 1 | |
| Max.input current per MPPT | 13A | 13/13A | 13/13A | |
| Max.short-circuit current per MPPT | 20A | 20A | 20A | |
| On-grid (Bidirection) |
Rated input power | 3600W | 5000W | 6000W |
| Rated input current | 15.7A | 21.7A | 26.1A | |
| Rated grid voltage | 230V(L,N,PE)50/60Hz | 230V(L,N,PE)50/60Hz | 230V(L,N,PE)50/60Hz | |
| THDi | ＜3% | ＜3% | ＜3% | |
| Power factor | -0.8～+0.8 | -0.8～+0.8 | -0.8～+0.8 | |
| Batten parameters (Bidirection) |
Battery type | SLA &LiFePO4 | SLA &LiFePO4 | SLA &LiFePO4 |
| Battery voltage range | 40-60V | 40-60V | 40-60V | |
| Rated Battery voltage | 48VDC | 48VDC | 48VDC | |
| Max.charge/discharge current | 50A | 100A | 100A | |
| BMS communication mode | 485:CAN | 485:CAN | 485:CAN | |
| Back-up Output (AC Output) |
Rated output power | 3600W | 5000W | 6000W |
| Rated output current | 15.7A | 21.7A | 26.1A | |
| Rated output voltage | 230V(L,N,PE)50/60Hz | 230V(L,N,PE)50/60H | 230V(L,N,PE)50/60Hz | |
| Surge power | 3960VA | 5500VA | 6600VA | |
| THDv(@linear load) | ＜3% | ＜3% | ＜3% | |
| switching time | <10ms | <10m | <10m | |
| Efficiency | Max. MPPT efficiency | 99.90% | 99.90% | 99.90% |
| Max. efficiency | 97.20% | 98.00% | 98.00% | |
| European efficiency | 96.40% | 97.10% | 97.10% | |
| Battery charging/discharging efficiency | 94.00% | 94.00% | 94.00% | |
| Protection | Protection | √DC switch √PV reverse connection protection √Battery reverse connection protection √Output short-circuit protection √Output overvoltage protection √Insulation impedance detection √Residual current detection √Anti-island protection |
||
| Surge Protection | PV:Type Ⅲ, AC:Type Ⅲ | |||
| Ip rating | IP65 | IP65 | IP65 | |
| General parameters |
Operating temperature range | -25~60℃ | -25~60℃ | -25~60℃ |
| Relative humidity range | 0～95% | 0~95% | 0~95% | |
| Installation type | Wall mounted | Wall nnounted | Wall mounte | |
| Cooling mode | Natural cooling | Natural cooling | Natural cooling | |

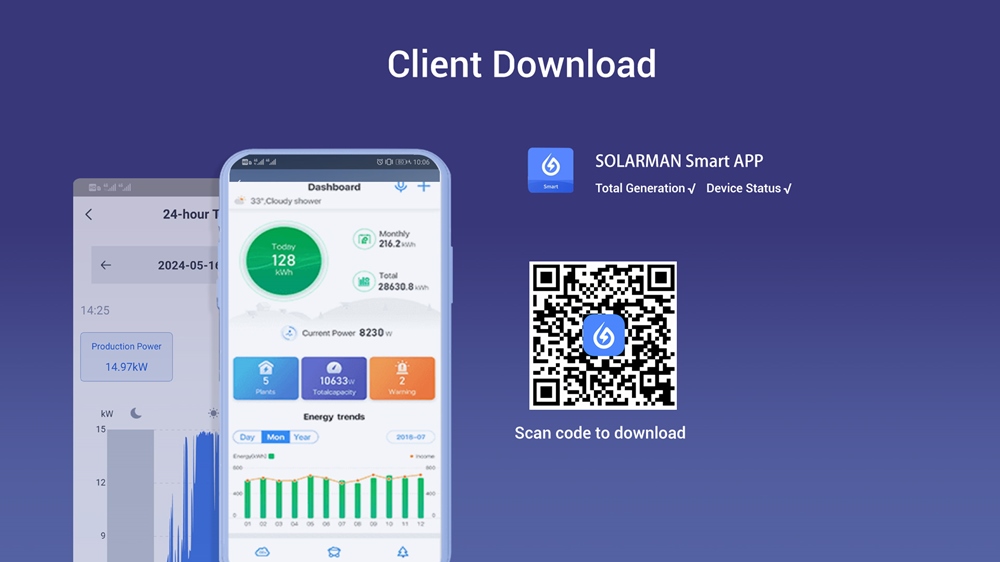

| Communication | Wi-Fi; R485; CAN; GPRS | Wi-Fi; R485; CAN; GPRS | Wi-Fi; R485; CAN; GPRS | |

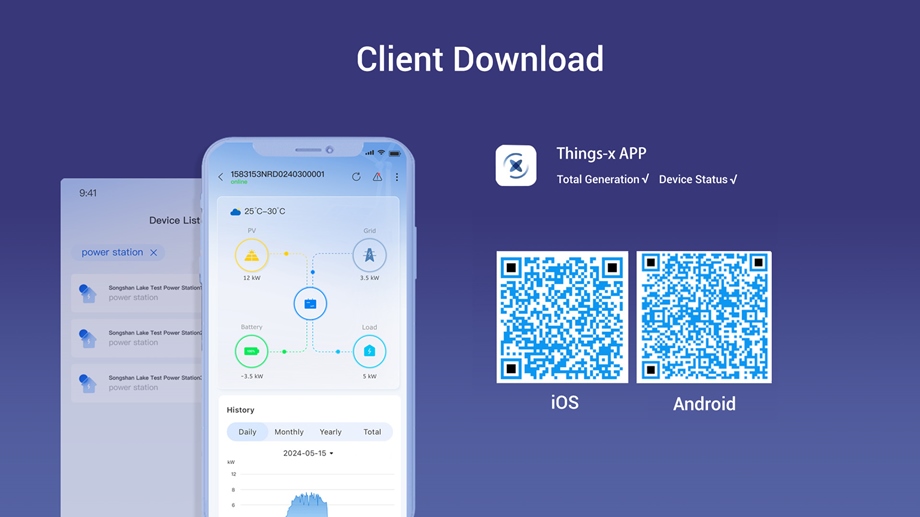

| Display | LCD;APP | LCD;APP | LCD;APP | |
| Mechanical specifications | Inverter dimensions (L*W*H)(mm) | 535*485*198.5 | 535*485*198.5 | 535*485*198.5 |
| Net weight (kg) | 27.5 | 29 | 29 | |
| Carton dimensions (L*W*H)(mm) | 715*565*331 | 715*565*331 | 715*565*331 | |
| Gross weight (kg) | 31.5 | 34.5 | 34.5 | |
| Warranty | 5 Years Standard (10/15 Years Optional) | |||
|
Gospower is a leading Energy &Electric company founded in 2006. We are world-renowned manufacturer and supplier of energy storage battery,hybrid and off-grid inverters and power supply products. 1. One-stop service 2. 18+ Years Experience 3. Strict QC inspection report for each order 4. Automatic production equipments, complete the order with quality and quantity guarantee, 99.9%+ good product yield rate 5. Engineers have extensive experience in installation solutions and can design installation solutions based on specific project details 6. Perfect after-sales service system 7. More than 10 overseas offices 8. Dispatch technicians for on-site maintenance and technical training, and provide marketing strategies and marketing materials |
 |
 |
|
 |
Headquartered in Shenzhen,Gospower has a factory in Dongguan Songshan Lake Industrial Park of 80,000 sqm,more than 1200 employees.
|
