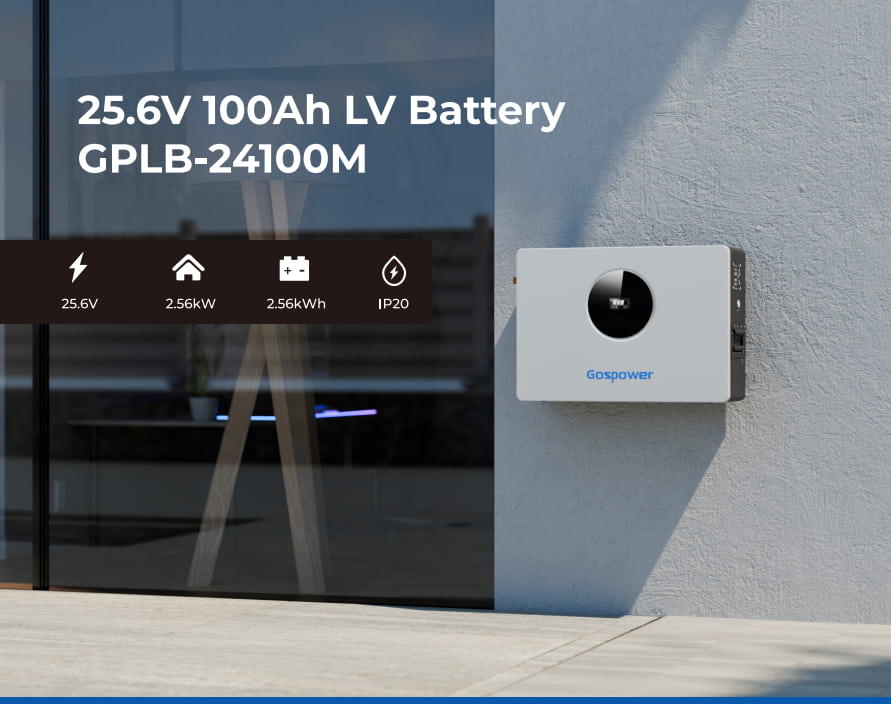

Gospower GPLB-24100M wall mounted lithium battery adopts plug-in design with the feature of fast installation. Up to 40.96kWh power storage with max.16 units paralleling connected, which can be used in your home or small commerical scenes.
Item No :
GPLB-24100MWeight :
23kg25.6V 2.56kWh Low Voltage Rack-Mounted LiFePO4 Battery
Ultra-thin
Smart Connection
High Density
10 Years Warranty
Builtin BMS Communication

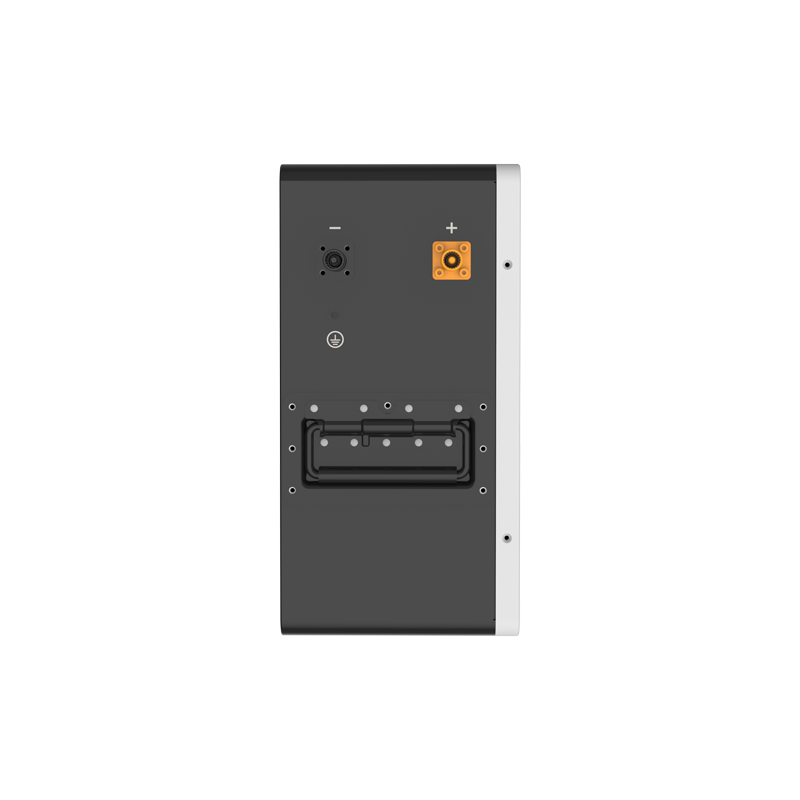

Plugin terminal design, fast installation available
Under voltage automatically restart
Easy maintenance
High power charging/discharging @ 6000 cycles
Standard protocols & user-defined protocols
The 2.56kWh Low Voltage Rack-Mounted LiFePO4 Battery is a state-of-the-art energy storage solution designed to meet the diverse energy needs of both residential and commercial settings. The 25.6V 100Ah Wall Mounted Lithium Battery with a built-in intelligent BMS. They have a rated voltage of 25.6V, a current of 100Ah, and provide 2.56kwh of energy.
Gospower GPLB-24100M wall mounted lithium battery is engineered with cutting-edge technology, these batteries provide a reliable and efficient energy storage solution for your solar power system. This wall mounted design Li-ion LiFePO4 battery with a total usable energy of 2.56 kWh is perfect for small to medium residential or office installations with a proven Lithium Iron Phosphate (LifePO4) solution that offers a low internal resistance with excellent continuous high current discharge performance and great lifecycle of more than 6000 at 80% DOD. The battery has a wide operating temperature range without many restrictions, making it more convenient for daily life and work. The 2.56kwh wall-mounted solar battery supports a parallel connection to expand capacity and power.

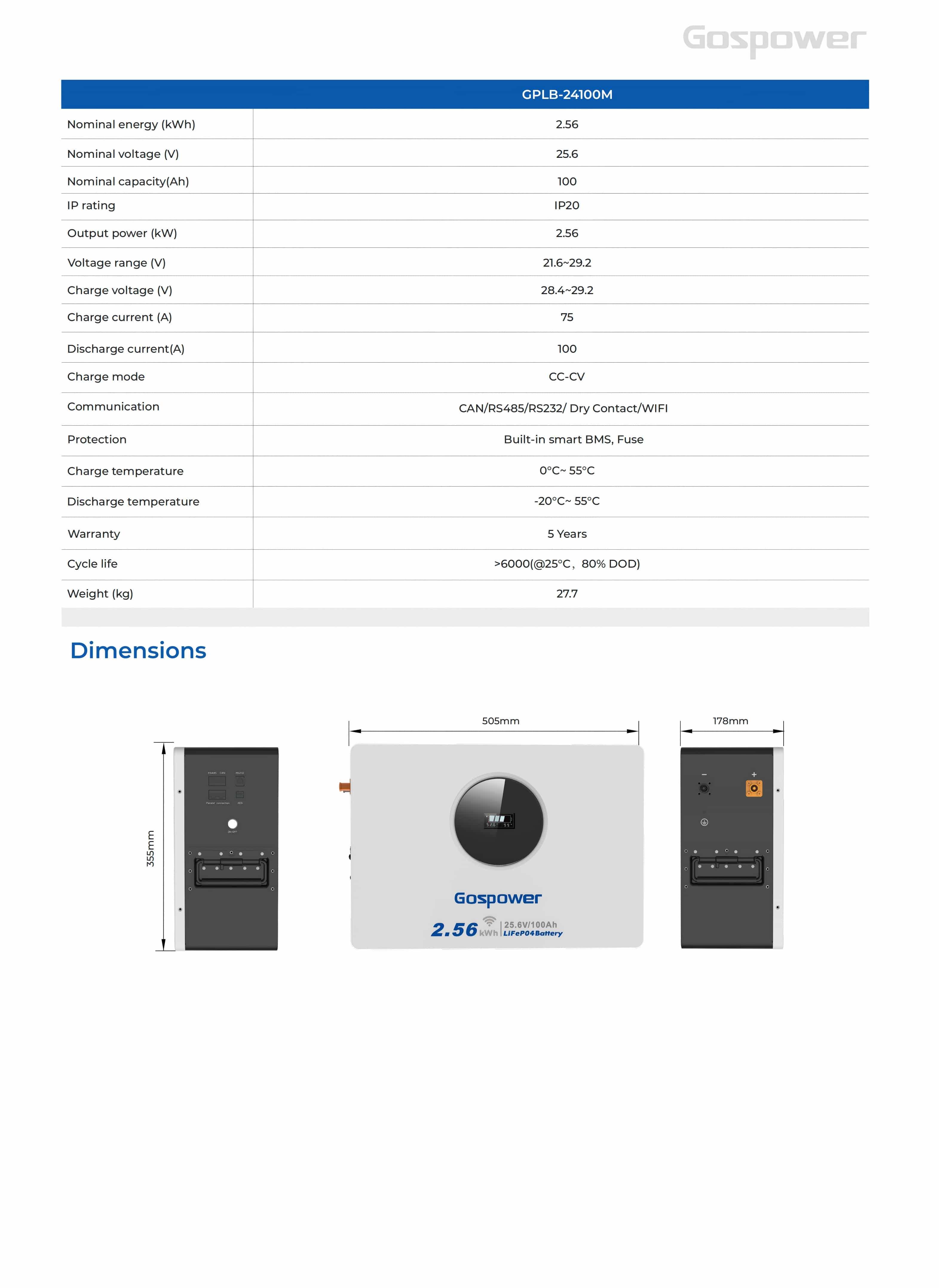

| GPLB-24100M | ||||||
| Nominal Energy (kWh) | 2.56 | |||||
| Nominal Voltage (V) | 25.6 | |||||
| Nominal Capacity (Ah) | 100 | |||||
| IP Rating | IP 20 | |||||
| Output Power (kW) | 2.56 | |||||
| Voltage Range (V) | 21.6~29.2 | |||||
| Charge Voltage (V) | 28.4~29.2 | |||||
| Charge Current (A) | 100 | |||||
| Discharge Current (A) | 100 | |||||
| Charge Mode | CC-CV | |||||
| Communication | CAN / RS485 / RS232 | |||||
| Charge Temperature | 0-50 ℃ | |||||
| Discharge Temperature | -20°C~55℃ | |||||
| Designed Life | 10+Years | |||||
| Cycle Life | >6000(@25°C,80%DOD) | |||||
| Weight (kg) | 23 | |||||
|
Gospower is a leading Energy &Electric company founded in 2006. We are world-renowned manufacturer and supplier of energy storage battery,hybrid and off-grid inverters and power supply products. 1. One-stop service 2. 18+ Years Experience 3. Strict QC inspection report for each order 4. Automatic production equipments, complete the order with quality and quantity guarantee, 99.9%+ good product yield rate 5. Engineers have extensive experience in installation solutions and can design installation solutions based on specific project details 6. Perfect after-sales service system 7. More than 10 overseas offices 8. Dispatch technicians for on-site maintenance and technical training, and provide marketing strategies and marketing materials |
 |
 |
|
 |
Headquartered in Shenzhen,Gospower has a factory in Dongguan Songshan Lake Industrial Park of 80,000 sqm,more than 1200 employees.
|
Aging Test |
ATE Test |
Auto Plugin |
|
Conduction Pretest |
Conduction Pretest |
EMS Test |
|
PCB Test |
Vibration Test |
Final Inspection |
