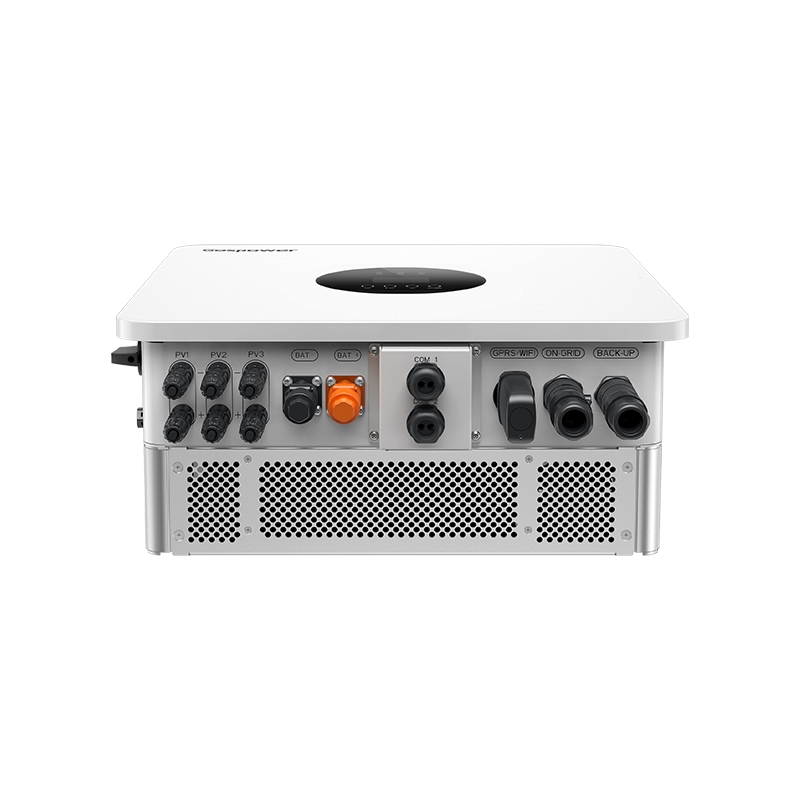

Gospower GPEX-15KH3 three phase PV inverter system can provide an uninterrupted backup power supply even during power outages.
Item No :
GPEX-15KH315kW Built-in MPPT 15A+32A Three Phase Solar Hybrid Inverter
Strong IP65 protection, completed sealed cover suitable for harsh environment
Support stackable battery
Built-In BMS Communication
MPPT efficiency 99%
"Green" alternative to generators
5/10/15 years warranty
Gospower 3 Phase Solar Hybrid Inverter adopts advanced MPPT control technology, real-time detection of solar panels power voltage, tracking the highest voltage and current, efficiency is as high as 98%.
15kW transformerless grid tie inverter for three phase on grid solar power system, High efficiency 15 kW / 20 hp solar water pump inverter with MPPT, all weather automatic operation, wide input voltage range and high efficient MPPT more than 99%, high reliability due to perfect protection function, can power all kinds of applicances in home or office environment including motor-type applicances such as tube light, fan, refrigerator and air conditioner.
| GPEX-10KH3 | GPEX-12KH3 | GPEX-15KH3 | ||
| PV (DC Input) |
Recommended max.PV input power | 22800W | 22800W | 22800W |
| Max.input voltage(Voc) | 1000V | 1000V | 1000V | |
| MPPT operating voltage range | 200-850V(@200V start up) | 200-850V(@200V start up) | 200-850V(@200V start up) | |
| Number of MPPT | 2 | 2 | 2 | |
| Max.number of input strings per MPPT | 1+2 | 1+2 | 1+2 | |
| Max.input current per MPPT | 15A+30A | 15A+30A | 15A+30A | |
| Max.short-circuit current per MPPT | 19.5/40A | 19.5/40A | 19.5/40A | |
| On-grid (Bidirection) |
Rated input power | 10000W | 12000W | 15000W |
| Rated input current | 14.5A | 17.4A | 21.7A | |
| Rated grid voltage | 400V(L1,L2,L3,N,PE)50/60Hz | 400V(L1,L2,L3,N,PE)50/60Hz | 400V(L1,L2,L3,N,PE)50/60Hz | |
| THDI | ＜3% | ＜3% | ＜3% | |
| Power factor | -0.8～+0.8 | 0.8～+0.8 | -0.8～+0.8 | |
| Battery parameters (Bidirection) |
Battery type | SLA&LiFePO4 | SLA&LiFePO4 | SLA&LiFePO4 |
| Rattery voltage rang | 160-800V | 160-800V | 160-800V | |
| Rated Battery Voltage | 400V | 400V | 400V | |
| Max.charge/discharge current | 50A | 50A | 50A | |
| BMS cor munication mode | 485;CAN | 485;CAN | 485;CAN | |
| Back-up Output (AC Output) |
Bated output power | 10000W | 2000W | 15000W |
| Rated output current | 14.5A | 17.4A | 21.7A | |
| Rated output voltage | 400V(L1,L2,L3,N,PE)50/60Hz | 400V(L1,L2,L3,N,PE)50/60Hz | 400V(L1L2,L3,N,PE)50/60H | |
| Surge power | 11000VA | 13200VA | 16500VA | |
| THDv(@linear load) | <3% | <3% | <3% | |
| Switching time | <10ms | 10ms | 10ms | |
| Efficiency | Max.MPPT efficiency | 99.90% | 99.90% | 99.90% |
| Max.efficiency | 98.00% | 98.00% | 98.00% | |
| European efficiency | 97.50% | 97.50% | 97.50% | |
| Battery charging/discharging efficiency | 97.00% | 97.00% | 97.00% | |
| Protection | Protection | √Dc switch √PV reverse connection protection √Battery reverse connection pro √Output short-circuit protection √Output overvoltage protection √Insulation impedance detection √Residual current detection √Anti-island protection |
||
| Surge protection | PV:Type III,AC:Type III | |||
| IP rating | IP65 | IP65 | IP65 | |
| General parameters |
0peing temperature range | -20~60℃ | -20~60℃ | -20~60℃ |
| Relative humidity range | 10～90% | 10~90% | 10～90% | |
| Insatllation type | Wall mounted | Wall mounted | Wall mounted | |
| Cooling mode | Smart cooling | Smart cooling | Smart cooling | |
| communication | Wi-Fi;R485;CAN;GPRS | Wi-Fi;R485;CAN;GPRS | Wi-Fi;R485;CAN;GPRS | |
| Display | LCD;APP | LCD:APP | LCD;APP | |
| Mechanical specifications | Inverter dimeions (L*W*H)(mm) | 480*425*202 | 480*425*202 | 480*425*202 |
| Net weight (kg) | 25 | 26 | 27 | |
| Carton dimensions (L*W*H)(mm) | 637*545*326 | 637*545*326 | 637*545*326 | |
| Gross weight (kg) | 29 | 30 | 31 | |
| Warranty | 5 Years Standard (10/15 Years Optional | |||
|
