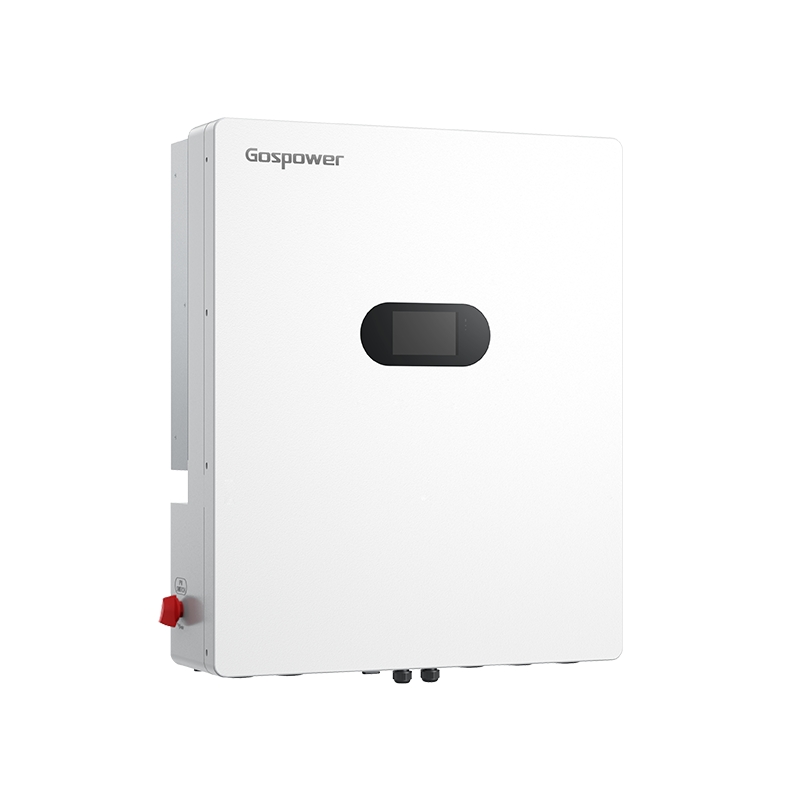

15kW 27A Built-in MPPT Split Phase Residential Hybrid Inverter

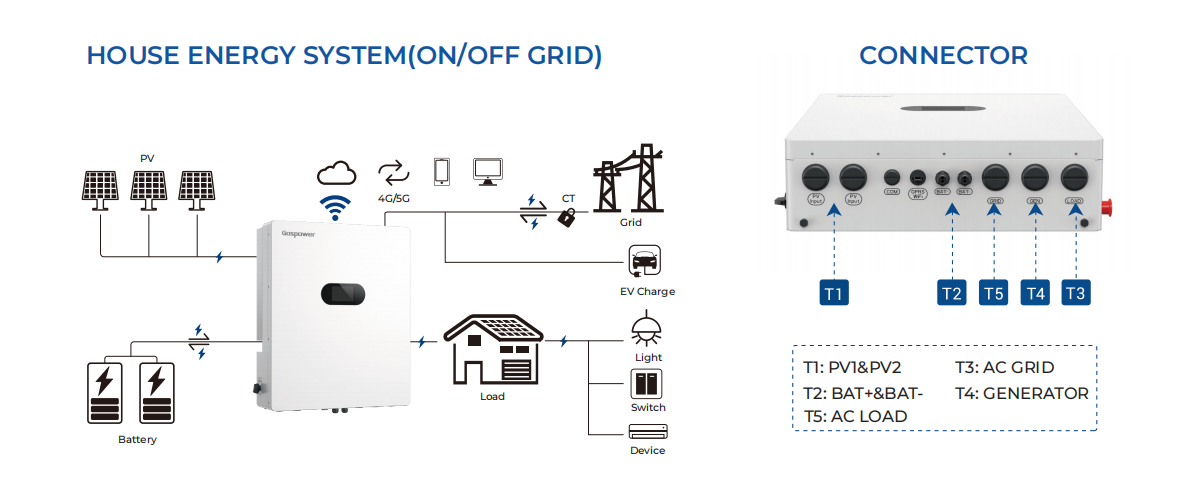

Gospower GPEX-15KH2 split phase PV inverter system can provide an uninterrupted backup power supply even during power outages.

  • Item No :

    GPEX-15KH2

15kW 27A Built-in MPPT Split Phase Residential Hybrid Inverter



TYPE 4X Design

Natural Cooling

Support Stackable Battery

Generator Port

5/10/15 Years Warranty



The gospower gpex-15kh2 split phase pv inverter system, maximum reliability of uninterrupted power supply is ensured even in the event of a power outage. Boasting a powerful 15KW capacity and 27A MPPT, this residential hybrid inverter is designed to integrate seamlessly into your home, keeps your essential appliances and equipment functioning during any disruption, providing continuous backup power in the event of a conventional power failure.

12kW/MPPT Solar Inverter

27A Residential Hybrid Inverter






  GPEX-8KH2
GPEX-10KH2
GPEX-12KH2
GPEX-15KH2
PV
(DC Input)
Recommended max.PV input power 14.4KW 14.4KW 20kW 24kW
Max.input voltage(Voc) 550V 550V 550V 550V
MPPT operating voltage range 120-550V 120-550V 120-550V 120-550V
No. of MPPT/Strings per MPPT 4/1 4/1 4/2 4/2
Max input power per MPPT 3.6kW 3.6kW 5kW 6kW
Max.input current per MPPT 15.5A 15.5A 27A 27A
Max.short-circuit current per MPPT 20A 20A 40A 40A
On-grid
(Bidirection)
Rated input power (Bidirection) 8000W 10000W 12000W 15000W
Rated input current (Bidirection) 33.3A 41.6A 50A 62.5A
Max. Continuous AC input power 20kW 20kW 20kW 20kW
Max. Continuous AC input current
83.3A 83.3A
83.3A
83.3A
THDi <3% <3% <3% <3%
Rated grid voltage
120/240V,208V (L1, L2, N) 50/60Hz
120/240V,208V (L1, L2, N) 50/60Hz
120/240V,208V (L1, L2, N) 50/60Hz
120/240V,208V (L1, L2, N) 50/60Hz
Power factor -0.8~+0.8 -0.8~+0.8 -0.8~+0.8 -0.8~+0.8
Battery
parameters
(Bidirection)
Battery type LiFePO4 LiFePO4 LiFePO4 LiFePO4
Rattery voltage range 75-480Vdc 75-480Vdc 75-480Vdc 75-480Vdc
Rated Battery Voltage 153.6Vdc 153.6Vdc 204.8Vdc 204.8Vdc
Max.charge/discharge current 75A 75A 75A 75A
BMS conmmunication mode 485;CAN 485;CAN 485;CAN 485;CAN
Back-up
Output
(AC Output)
Rated Output voltage(L-L) 120/240V,208V (L1, L2, N) 50/60Hz 120/240V,208V (L1, L2, N) 50/60Hz 120/240V,208V (L1, L2, N) 50/60Hz 120/240V,208V (L1, L2, N) 50/60Hz
Output power/current (L-L)

Rated: 8kW/ 33.3A ;

Max.: 19kW/79.2A (On Grid )

Rated: 10kW/ 41.6A ;

Max.: 19kW/79.2A (On Grid )

Rated: 12kW / 50A ;

Max.: 19kW/79.2A (On Grid )

Rated: 15kW / 62.5A ;

Max.: 19kW/79.2A (On Grid )

Rated output voltage(L-N) 120 V (L, N) 60Hz 120 V (L, N) 60Hz 120 V (L, N) 60Hz 120 V (L, N) 60Hz
Generator Parameters (AC Input) Rated AC input voltage 120/240 V (L1, L2,N) 60Hz 120/240 V (L1, L2,N) 60Hz 120/240 V (L1, L2,N) 60Hz 120/240 V (L1, L2,N) 60Hz
Max. AC input current 79.2A 79.2A 79.2A 79.2A
Max. AC input power 1 9kW 1 9kW 1 9kW 1 9kW

Efficiency

Peak efficiency

97.00%

97.00%

97.00%

97.00%

Max. MPPT efficiency

99.90%

99.90%

99.90%

99.90%

Battery charging/discharging efficiency

96.00%

96.00%

96.00%

96.00%

Protection Inner protection

√Dc switch     PV reverse connection protection     Battery reverse connection protection

Output short-circuit protection     Output overvoltage protection     ARC protection

Insulation impedance detection     Residual current detection     Anti-island protection

Surge protection PV:Type III,AC:Type III
PV:Type III,AC:Type III
PV:Type III,AC:Type III
PV:Type III,AC:Type III
Enclosure Type Type 4X Type 4X Type 4X Type 4X
General Parameters Operating temperature range -22°F~+140°F (No derating below 113° F) -22°F~+140°F (No derating below 113° F) -22°F~+140°F (No derating below 113° F) -22°F~+140°F (No derating below 113° F)
Switching time 10ms typical (On grid/off grid switch) 10ms typical (On grid/off grid switch) 10ms typical (On grid/off grid switch) 10ms typical (On grid/off grid switch)
Relative humidity range >3000m derating >3000m derating >3000m derating >3000m derating
Cooling mode Natural cooling Natural cooling Natural cooling Natural cooling

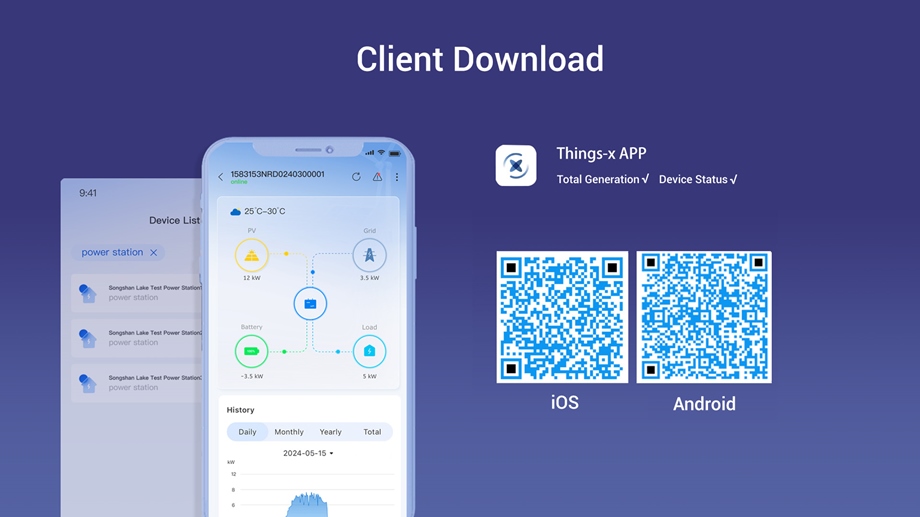

Communication WIFI/BLUETOOTH WIFI/BLUETOOTH WIFI/BLUETOOTH WIFI/BLUETOOTH

Mechanical

Specifications

Inverter dimensions (L*W*H)(mm) 840*680*200 840*680*200 840*680*200 840*680*200
Net weight (kg) 55 55 55 55
Shipping dimensions (L*W*H) (mm) 1075*895*365 1075*895*365 1075*895*365 1075*895*365
Gross weight (kg) 65 65 65 65
Warranty Period 5 Years Standard (10/15 Years Optional)
