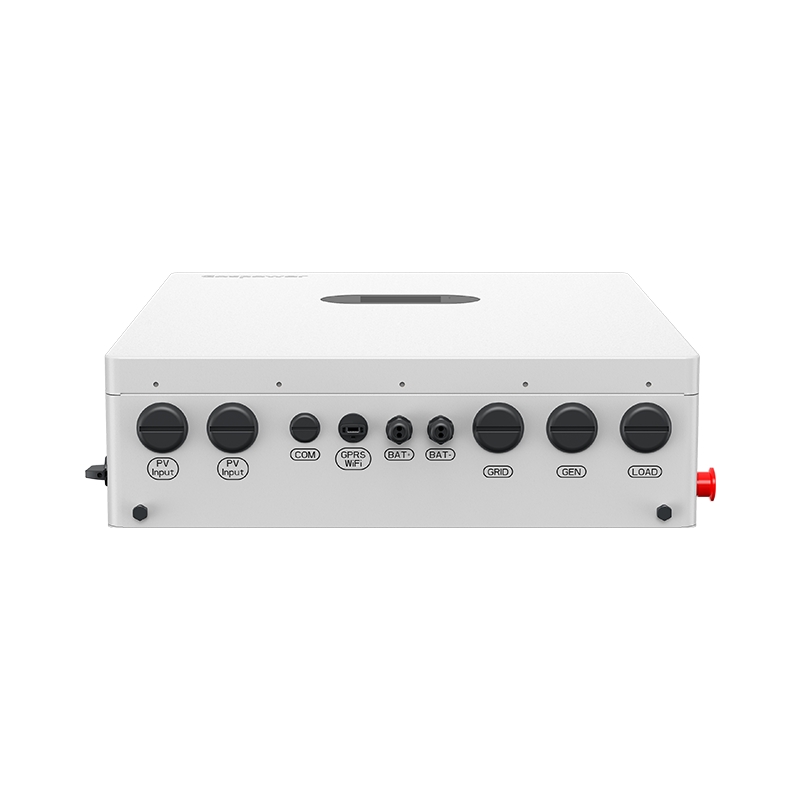

Gospower GPEX-12KH2 split phase PV inverter system can provide an uninterrupted backup power supply even during power outages.
Item No :
GPEX-12KH212kW 27A Built-in MPPT Split Phase Residential Hybrid Inverter
TYPE 4X Design
Natural Cooling
Support Stackable Battery
Generator Port
5/10/15 Years Warranty
The Gospower GPEX-12KH2 Split Phase PV Inverter System, your reliable solution for uninterrupted power supply, coupled with the technology of the 12kW/MPPT 27A Split Phase Residential Hybrid Inverter. Engineered to seamlessly integrate into residential setups, this innovative hybrid system ensures continuous power flow even during unforeseen outages.
With its robust design and advanced MPPT technology, the Gospower GPEX-12KH2 Hybrid Inverter delivers uninterrupted backup power, providing peace of mind and uninterrupted functionality for your household appliances and devices. Say goodbye to power interruptions and hello to reliable performance with the Gospower GPEX-12KH2 Hybrid Inverter.
| |
GPEX-8KH2 |
GPEX-10KH2 |
GPEX-12KH2 |
GPEX-15KH2 |
|
| PV (DC Input) |
Recommended max.PV input power | 14.4kW | 14.4kW | 20kW | 24kW |
| Max.input voltage(Voc) | 550V | 550V | 550V | 550V |
|
| MPPT operating voltage range | 120-550V | 120-550V | 120-550V | 120-550V |
|
| No. of MPPT/Strings per MPPT | 4/1 | 4/1 | 4/2 | 4/2 |
|
| Max input power per MPPT | 3.6kW | 3.6kW | 5kW | 6kW |
|
| Max.input current per MPPT | 15.5A | 15.5A | 27A | 27A |
|
| Max.short-circuit current per MPPT | 20A | 20A | 40A | 40A |
|
| On-grid (Bidirection) |
Rated input power (Bidirection) | 8000W | 10000W | 12000W | 15000W |
| Rated input current (Bidirection) | 33.3A | 41.6A | 50A | 62.5A |
|
| Max. Continuous AC input power | 20kW | 20kW | 20kW | 20kW |
|
| Max. Continuous AC input current |
83.3A | 83.3A |
83.3A |
83.3A |
|
| THDi | ＜3% | ＜3% | ＜3% | ＜3% | |
| Rated grid voltage |
120/240V,208V (L1, L2, N) 50/60Hz |
120/240V,208V (L1, L2, N) 50/60Hz |
120/240V,208V (L1, L2, N) 50/60Hz |
120/240V,208V (L1, L2, N) 50/60Hz |
|
| Power factor | -0.8～+0.8 | -0.8～+0.8 | -0.8～+0.8 | -0.8～+0.8 |
|
| Battery parameters (Bidirection) |
Battery type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
| Rattery voltage range | 75-480Vdc | 75-480Vdc | 75-480Vdc | 75-480Vdc |
|
| Rated Battery Voltage | 153.6Vdc | 153.6Vdc | 204.8Vdc | 204.8Vdc |
|
| Max.charge/discharge current | 75A | 75A | 75A | 75A |
|
| BMS conmmunication mode | 485;CAN | 485;CAN | 485;CAN | 485;CAN |
|
| Back-up Output (AC Output) |
Rated Output voltage(L-L) | 120/240V,208V (L1, L2, N) 50/60Hz | 120/240V,208V (L1, L2, N) 50/60Hz | 120/240V,208V (L1, L2, N) 50/60Hz | 120/240V,208V (L1, L2, N) 50/60Hz |
| Output power/current (L-L) |
Rated: 8kW/ 33.3A ; Max.: 19kW/79.2A (On Grid ) |
Rated: 10kW/ 41.6A ; Max.: 19kW/79.2A (On Grid ) |
Rated: 12kW / 50A ; Max.: 19kW/79.2A (On Grid ) |
Rated: 15kW / 62.5A ; Max.: 19kW/79.2A (On Grid ) |
|
| Rated output voltage(L-N) | 120 V (L, N) 60Hz | 120 V (L, N) 60Hz | 120 V (L, N) 60Hz | 120 V (L, N) 60Hz |
|
| Generator Parameters (AC Input) | Rated AC input voltage | 120/240 V (L1, L2,N) 60Hz | 120/240 V (L1, L2,N) 60Hz | 120/240 V (L1, L2,N) 60Hz | 120/240 V (L1, L2,N) 60Hz |
| Max. AC input current | 79.2A | 79.2A | 79.2A | 79.2A |
|
| Max. AC input power | 1 9kW | 1 9kW | 1 9kW | 1 9kW |
|
Efficiency |
Peak efficiency |
97.00% |
97.00% |
97.00% |
97.00% |
| Max. MPPT efficiency |
99.90% |
99.90% |
99.90% |
99.90% |
|
| Battery charging/discharging efficiency |
96.00% |
96.00% |
96.00% |
96.00% |
|
| Protection | Inner protection |
√Dc switch √PV reverse connection protection √Battery reverse connection protection √Output short-circuit protection √Output overvoltage protection √ARC protection √Insulation impedance detection √Residual current detection √Anti-island protection |
|||
| Surge protection | PV:Type III,AC:Type III |
PV:Type III,AC:Type III |
PV:Type III,AC:Type III |
PV:Type III,AC:Type III |
|
| Enclosure Type | Type 4X | Type 4X | Type 4X | Type 4X |
|
| General Parameters | Operating temperature range | -22°F~+140*F (No derating below 113° F) | -22°F~+140*F (No derating below 113° F) | -22°F~+140*F (No derating below 113° F) | -22°F~+140*F (No derating below 113° F) |
| Switching time | 10ms typical (On grid/off grid switch) | 10ms typical (On grid/off grid switch) | 10ms typical (On grid/off grid switch) | 10ms typical (On grid/off grid switch) |
|
| Relative humidity range | >3000m derating | >3000m derating | >3000m derating | >3000m derating |
|
| Cooling mode | Natural cooling | Natural cooling | Natural cooling | Natural cooling |
|
| Communication | WIFI/BLUETOOTH | WIFI/BLUETOOTH | WIFI/BLUETOOTH | WIFI/BLUETOOTH |
|
|
Mechanical Specifications |
Inverter dimensions (L*W*H)(mm) | 840*680*200 | 840*680*200 | 840*680*200 | 840*680*200 |
| Net weight (kg) | 55 | 55 | 55 | 55 |
|
| Shipping dimensions (L*W*H) (mm) | 1075*895*365 | 1075*895*365 | 1075*895*365 | 1075*895*365 |
|
| Gross weight (kg) | 65 | 65 | 65 | 65 |
|
| Warranty Period | 5 Years Standard (10/15 Years Optional) | ||||
|
Gospower is a leading Energy &Electric company founded in 2006. We are world-renowned manufacturer and supplier of energy storage battery,hybrid and off-grid inverters and power supply products. 1. One-stop service 2. 18+ Years Experience 3. Strict QC inspection report for each order 4. Automatic production equipments, complete the order with quality and quantity guarantee, 99.9%+ good product yield rate 5. Engineers have extensive experience in installation solutions and can design installation solutions based on specific project details 6. Perfect after-sales service system 7. More than 10 overseas offices 8. Dispatch technicians for on-site maintenance and technical training, and provide marketing strategies and marketing materials |
 |
 |
|
 |
Headquartered in Shenzhen,Gospower has a factory in Dongguan Songshan Lake Industrial Park of 80,000 sqm,more than 1200 employees.
|
Aging Test |
ATE Test |
Auto Plugin |
|
Conduction Pretest |
Conduction Pretest |
EMS Test |
|
PCB Test |
Vibration Test |
Final Inspection |
