The increasingly powerful GPEX-10KH3 PV inverter can keep your home appliances active with higher self-sufficient green energy and lower electricity bills.
Item No :

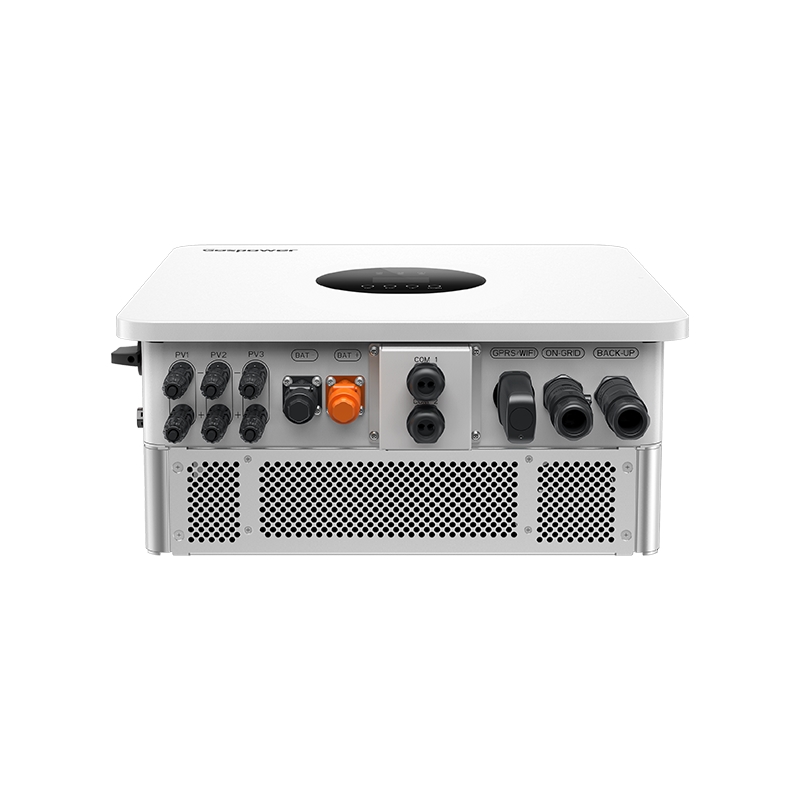

GPEX-10KH310kW Built-in MPPT 15A+30A 3 Phase Residential Hybrid Solar Inverter
IP65 rated for outdoor installation
Support stackable battery
Three phase loads unbalanced output
Built-In BMS Communication
"Green" alternative to generators
5/10/15 years warranty

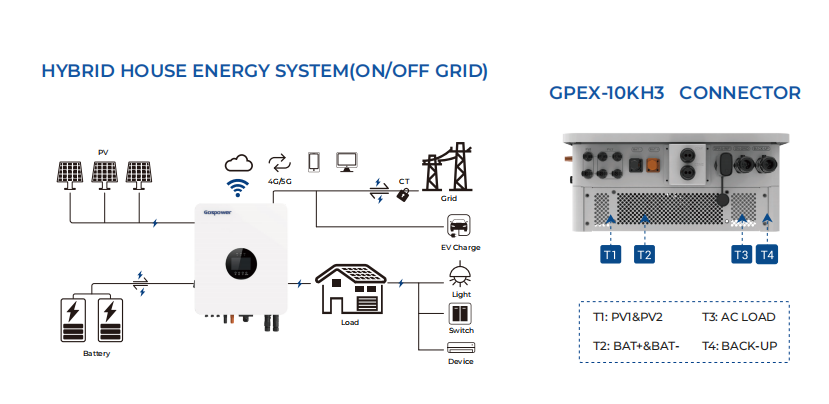

Gospower 10kW Three Phase Hybrid Inverter integrates controller and electricity which according to set up, can work under different modes providing power either to the load charged either by PV power or by grid, the power stored in the battery can be released whenever the load unbalanced output accroding to set up, to make a most flexible power solution. The units can also be installed in parallel with the larger 3ph string inverters, meaning that adding in battery storage to small and medium scale commercial installations is quite simple and cost effective.
| GPEX-10KH3 | GPEX-12KH3 | GPEX-15KH3 | ||
| PV (DC Input) |
Recommended max.PV input power | 22800W | 22800W | 22800W |
| Max.input voltage(Voc) | 1000V | 1000V | 1000V | |
| MPPT operating voltage range | 200-850V(@200V start up) | 200-850V(@200V start up) | 200-850V(@200V start up) | |
| Number of MPPT | 2 | 2 | 2 | |
| Max.number of input strings per MPPT | 1+2 | 1+2 | 1+2 | |
| Max.input current per MPPT | 15A+30A | 15A+30A | 15A+30A | |
| Max.short-circuit current per MPPT | 19.5/40A | 19.5/40A | 19.5/40A | |
| On-grid (Bidirection) |
Rated input power | 10000W | 12000W | 15000W |
| Rated input current | 14.5A | 17.4A | 21.7A | |
| Rated grid voltage | 400V(L1,L2,L3,N,PE)50/60Hz | 400V(L1,L2,L3,N,PE)50/60Hz | 400V(L1,L2,L3,N,PE)50/60Hz | |
| THDI | ＜3% | ＜3% | ＜3% | |
| Power factor | -0.8～+0.8 | 0.8～+0.8 | -0.8～+0.8 | |
| Battery parameters (Bidirection) |
Battery type | SLA&LiFePO4 | SLA&LiFePO4 | SLA&LiFePO4 |
| Rattery voltage rang | 160-800V | 160-800V | 160-800V | |
| Rated Battery Voltage | 400V | 400V | 400V | |
| Max.charge/discharge current | 50A | 50A | 50A | |
| BMS cor munication mode | 485;CAN | 485;CAN | 485;CAN | |
| Back-up Output (AC Output) |
Bated output power | 10000W | 2000W | 15000W |
| Rated output current | 14.5A | 17.4A | 21.7A | |
| Rated output voltage | 400V(L1,L2,L3,N,PE)50/60Hz | 400V(L1,L2,L3,N,PE)50/60Hz | 400V(L1L2,L3,N,PE)50/60H | |
| Surge power | 11000VA | 13200VA | 16500VA | |
| THDv(@linear load) | <3% | <3% | <3% | |
| Switching time | <10ms | 10ms | 10ms | |
| Efficiency | Max.MPPT efficiency | 99.90% | 99.90% | 99.90% |
| Max.efficiency | 98.00% | 98.00% | 98.00% | |
| European efficiency | 97.50% | 97.50% | 97.50% | |
| Battery charging/discharging efficiency | 97.00% | 97.00% | 97.00% | |
| Protection | Protection | √Dc switch √PV reverse connection protection √Battery reverse connection pro √Output short-circuit protection √Output overvoltage protection √Insulation impedance detection √Residual current detection √Anti-island protection |
||
| Surge protection | PV:Type III,AC:Type III | |||
| IP rating | IP65 | IP65 | IP65 | |
| General parameters |
0peing temperature range | -20~60℃ | -20~60℃ | -20~60℃ |
| Relative humidity range | 10～90% | 10~90% | 10～90% | |
| Insatllation type | Wall mounted | Wall mounted | Wall mounted | |
| Cooling mode | Smart cooling | Smart cooling | Smart cooling | |
| communication | Wi-Fi;R485;CAN;GPRS | Wi-Fi;R485;CAN;GPRS | Wi-Fi;R485;CAN;GPRS | |
| Display | LCD;APP | LCD:APP | LCD;APP | |
| Mechanical specifications | Inverter dimeions (L*W*H)(mm) | 480*425*202 | 480*425*202 | 480*425*202 |
| Net weight (kg) | 25 | 26 | 27 | |
| Carton dimensions (L*W*H)(mm) | 637*545*326 | 637*545*326 | 637*545*326 | |
| Gross weight (kg) | 29 | 30 | 31 | |
| Warranty | 5 Years Standard (10/15 Years Optional | |||
|
