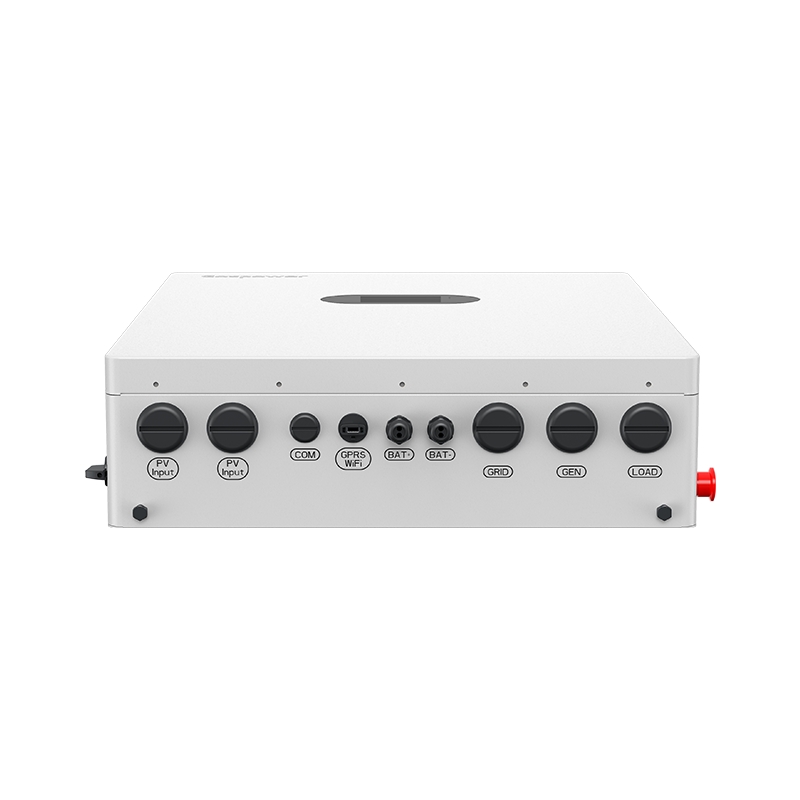

Gospower GPEX-10KH2 split phase PV inverter system can provide an uninterrupted backup power supply even during power outages.
Item No :
GPEX-10KH210kW Built-in MPPT 15.5A Split Phase Residential Hybrid Inverter
TYPE 4X Design
Natural Cooling
Support Stackable Battery
Generator Port
5/10/15 Years Warranty
The Gospower GPEX-10KH2 split phase PV inverter system, a revolutionary solution designed to ensure uninterrupted power supply, even in the face of outages. Engineered to deliver seamless performance, this innovative system harnesses solar energy to provide reliable backup power when traditional sources fail. With its split phase design, the GPEX-10KH2 offers versatility and efficiency, catering to diverse power needs.
The split phase residential hybrid inverter guarantees uninterrupted operation, empowering you to stay connected and productive, regardless of external conditions. Whether for residential or commercial applications, the GPEX-10KH2 stands as a reliable safeguard against power disruptions, offering peace of mind and uninterrupted productivity.
| |
GPEX-8KH2 |
GPEX-10KH2 |
GPEX-12KH2 |
GPEX-15KH2 |
|
| PV (DC Input) |
Recommended max.PV input power | 14.4kW | 14.4kW | 20kW | 24kW |
| Max.input voltage(Voc) | 550V | 550V | 550V | 550V |
|
| MPPT operating voltage range | 120-550V | 120-550V | 120-550V | 120-550V |
|
| No. of MPPT/Strings per MPPT | 4/1 | 4/1 | 4/2 | 4/2 |
|
| Max input power per MPPT | 3.6kW | 3.6kW | 5kW | 6kW |
|
| Max.input current per MPPT | 15.5A | 15.5A | 27A | 27A |
|
| Max.short-circuit current per MPPT | 20A | 20A | 40A | 40A |
|
| On-grid (Bidirection) |
Rated input power (Bidirection) | 8000W | 10000W | 12000W | 15000W |
| Rated input current (Bidirection) | 33.3A | 41.6A | 50A | 62.5A |
|
| Max. Continuous AC input power | 20kW | 20kW | 20kW | 20kW |
|
| Max. Continuous AC input current |
83.3A | 83.3A |
83.3A |
83.3A |
|
| THDi | ＜3% | ＜3% | ＜3% | ＜3% | |
| Rated grid voltage |
120/240V,208V (L1, L2, N) 50/60Hz |
120/240V,208V (L1, L2, N) 50/60Hz |
120/240V,208V (L1, L2, N) 50/60Hz |
120/240V,208V (L1, L2, N) 50/60Hz |
|
| Power factor | -0.8～+0.8 | -0.8～+0.8 | -0.8～+0.8 | -0.8～+0.8 |
|
| Battery parameters (Bidirection) |
Battery type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
| Rattery voltage range | 75-480Vdc | 75-480Vdc | 75-480Vdc | 75-480Vdc |
|
| Rated Battery Voltage | 153.6Vdc | 153.6Vdc | 204.8Vdc | 204.8Vdc |
|
| Max.charge/discharge current | 75A | 75A | 75A | 75A |
|
| BMS conmmunication mode | 485;CAN | 485;CAN | 485;CAN | 485;CAN |
|
| Back-up Output (AC Output) |
Rated Output voltage(L-L) | 120/240V,208V (L1, L2, N) 50/60Hz | 120/240V,208V (L1, L2, N) 50/60Hz | 120/240V,208V (L1, L2, N) 50/60Hz | 120/240V,208V (L1, L2, N) 50/60Hz |
| Output power/current (L-L) |
Rated: 8kW/ 33.3A ; Max.: 19kW/79.2A (On Grid ) |
Rated: 10kW/ 41.6A ; Max.: 19kW/79.2A (On Grid ) |
Rated: 12kW / 50A ; Max.: 19kW/79.2A (On Grid ) |
Rated: 15kW / 62.5A ; Max.: 19kW/79.2A (On Grid ) |
|
| Rated output voltage(L-N) | 120 V (L, N) 60Hz | 120 V (L, N) 60Hz | 120 V (L, N) 60Hz | 120 V (L, N) 60Hz |
|
| Generator Parameters (AC Input) | Rated AC input voltage | 120/240 V (L1, L2,N) 60Hz | 120/240 V (L1, L2,N) 60Hz | 120/240 V (L1, L2,N) 60Hz | 120/240 V (L1, L2,N) 60Hz |
| Max. AC input current | 79.2A | 79.2A | 79.2A | 79.2A |
|
| Max. AC input power | 1 9kW | 1 9kW | 1 9kW | 1 9kW |
|
Efficiency |
Peak efficiency |
97.00% |
97.00% |
97.00% |
97.00% |
| Max. MPPT efficiency |
99.90% |
99.90% |
99.90% |
99.90% |
|
| Battery charging/discharging efficiency |
96.00% |
96.00% |
96.00% |
96.00% |
|
| Protection | Inner protection |
√Dc switch √PV reverse connection protection √Battery reverse connection protection √Output short-circuit protection √Output overvoltage protection √ARC protection √Insulation impedance detection √Residual current detection √Anti-island protection |
|||
| Surge protection | PV:Type III,AC:Type III |
PV:Type III,AC:Type III |
PV:Type III,AC:Type III |
PV:Type III,AC:Type III |
|
| Enclosure Type | Type 4X | Type 4X | Type 4X | Type 4X |
|
| General Parameters | Operating temperature range | -22°F~+140°F (No derating below 113° F) | -22°F~+140°F (No derating below 113° F) | -22°F~+140°F (No derating below 113° F) | -22°F~+140°F (No derating below 113° F) |
| Switching time | 10ms typical (On grid/off grid switch) | 10ms typical (On grid/off grid switch) | 10ms typical (On grid/off grid switch) | 10ms typical (On grid/off grid switch) |
|
| Relative humidity range | >3000m derating | >3000m derating | >3000m derating | >3000m derating |
|
| Cooling mode | Natural cooling | Natural cooling | Natural cooling | Natural cooling |
|

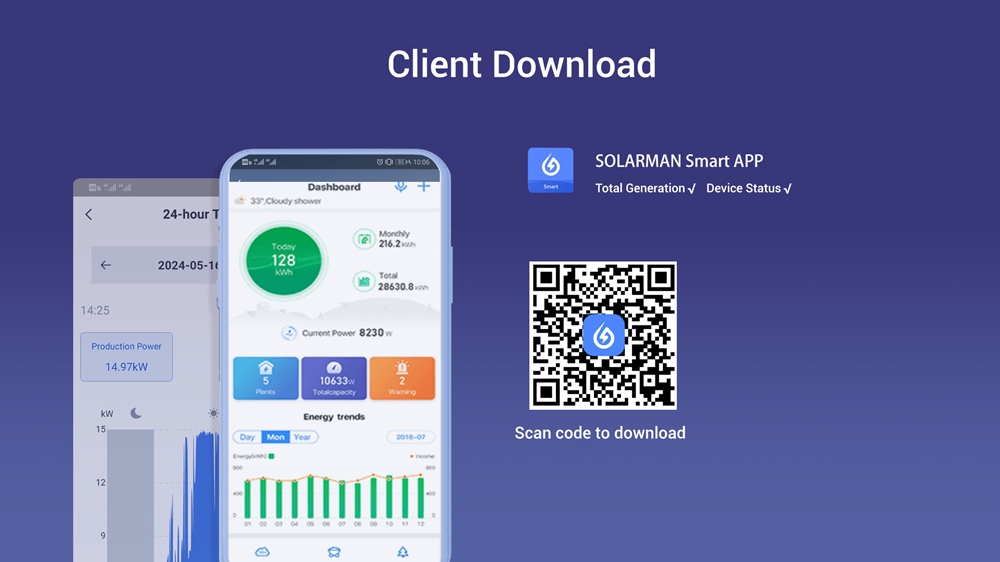

| Communication | WIFI/BLUETOOTH | WIFI/BLUETOOTH | WIFI/BLUETOOTH | WIFI/BLUETOOTH |
|
|
Mechanical Specifications |
Inverter dimensions (L*W*H)(mm) | 840*680*200 | 840*680*200 | 840*680*200 | 840*680*200 |
| Net weight (kg) | 55 | 55 | 55 | 55 |
|
| Shipping dimensions (L*W*H) (mm) | 1075*895*365 | 1075*895*365 | 1075*895*365 | 1075*895*365 |
|
| Gross weight (kg) | 65 | 65 | 65 | 65 |
|
| Warranty Period | 5 Years Standard (10/15 Years Optional) | ||||
|
Gospower is a leading Energy &Electric company founded in 2006. We are world-renowned manufacturer and supplier of energy storage battery,hybrid and off-grid inverters and power supply products. 1. One-stop service 2. 18+ Years Experience 3. Strict QC inspection report for each order 4. Automatic production equipments, complete the order with quality and quantity guarantee, 99.9%+ good product yield rate 5. Engineers have extensive experience in installation solutions and can design installation solutions based on specific project details 6. Perfect after-sales service system 7. More than 10 overseas offices 8. Dispatch technicians for on-site maintenance and technical training, and provide marketing strategies and marketing materials |
 |
 |
|
 |
Headquartered in Shenzhen,Gospower has a factory in Dongguan Songshan Lake Industrial Park of 80,000 sqm,more than 1200 employees.
|
Aging Test |
ATE Test |
Auto Plugin |
|
Conduction Pretest |
Conduction Pretest |
EMS Test |
|
PCB Test |
Vibration Test |
Final Inspection |
